TalkOps Framework

Central Server & Multi-Client Architecture

TalkOps can run as a centralized, multi-tenant execution server (talkops serve) that hosts the LangGraph agent runtime, persists threads and long-term memory in PostgreSQL, ingests production webhooks, and accepts concurrent connections from multiple terminal UI (TUI) and headless CLI clients.

Instead of isolating operational context on individual engineer laptops, deploying a Central Server gives your entire SRE, DevOps, and platform team a shared operational control plane where engineers can inspect live webhook-triggered incident threads, attach from their local terminal, fork investigations (/fork), and run headless CI/CD checks against a single governed runtime.

🌐 Shared LangGraph Runtime

Centralize LLM credentials, cloud IAM roles, MCP servers, and Jev Smart Mode routing behind a single hardened server endpoint on port 2024.

🐘 PostgreSQL State & Store

Persist conversation checkpoints (TalkOpsPostgresCheckpointer) and long-term cross-thread memory in PostgreSQL with automatic SQLite fallback for single-node setups.

🔐 1-Step JWT Token Exchange

Clients exchange long-lived API keys (oc_live_...) once at POST /api/v1/auth/token for short-lived signed JWTs (eyJ...) verified locally in <1ms.

🛡️ Per-User Tenant Isolation

Every thread is stamped with metadata["owner"] = user_id, and memory store namespaces are automatically isolated per user ((user_id, ...)).

Architecture overview​

When you launch talkops serve, TalkOps starts a unified ASGI server (powered by LangGraph Server and Starlette) that exposes four logical surfaces:

  1. LangGraph Execution API (/threads, /runs, /assistants, /store): Streams real-time agent turns, tool calls, subagent delegations, and human-in-the-loop interrupts to connected TUI and CLI clients via RemoteAgentClient.
  2. Session & Thread Management API (/api/v1/*): Provides high-speed thread listing, title updates, checkpoint pruning, and thread forking (RemoteSessionBackend) with strict owner filtering.
  3. Authentication & OIDC Discovery (/api/v1/auth/token, /.well-known/*): Handles 1-step API-key-to-JWT token exchange and publishes OpenID Connect / JWKS metadata for cloud workload identity federation.
  4. Inbound Webhook Listener (/webhooks/*): Ingests real-time DevOps events on the same port (2024) or an isolated --webhook-port.

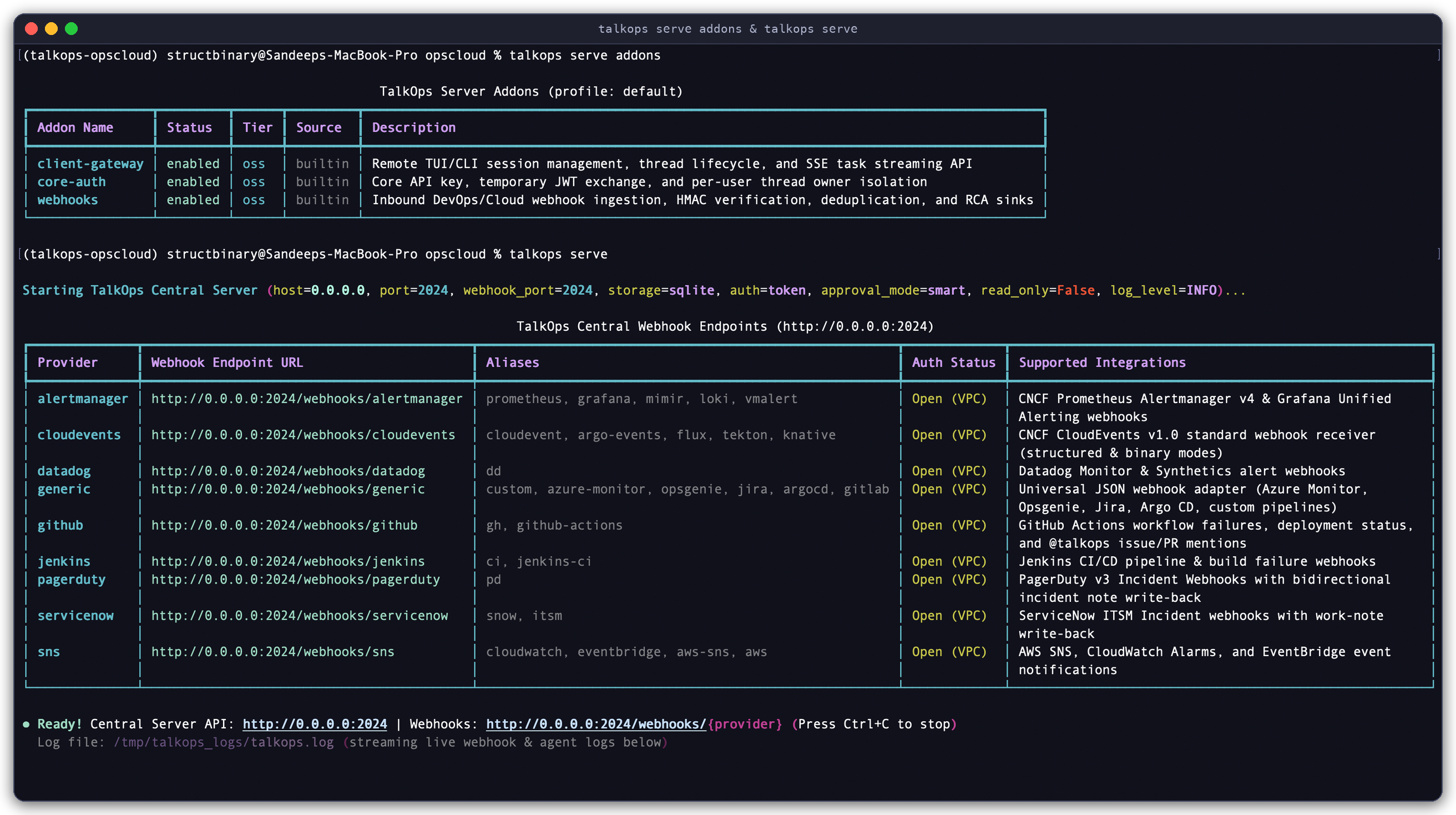

Launching the central server​

Run talkops serve on a VM, Kubernetes pod, or ECS service to start the central runtime.

talkops serve \
  --host 0.0.0.0 \
  --port 2024 \
  --postgres-uri "postgresql://talkops:password@postgres.internal:5432/talkops" \
  --auth-mode token \
  --approval-mode smart \
  --workspaces-dir /var/lib/talkops/workspaces

Server CLI flags & environment variables​

FlagEnvironment VariableDefaultDescription
--hostTALKOPS_WEBHOOK_HOST0.0.0.0Bind address for the Central Server HTTP listener.
--portTALKOPS_WEBHOOK_PORT2024Primary port for LangGraph client connections, /api/v1/*, and /webhooks/*.
--webhook-port—Same as --portOptional separate port dedicated exclusively to inbound /webhooks/* traffic.
--webhook-host—Same as --hostOptional bind address when --webhook-port is set.
--postgres-uriTALKOPS_POSTGRES_URI / POSTGRES_URINone (SQLite)PostgreSQL connection string for multi-user checkpointing and store persistence.
--auth-modeTALKOPS_AUTH_MODEnoop (token if keys set)Authentication enforcement mode: token (enforces JWT/API key auth) or noop (trusted local network).
--approval-modeTALKOPS_SERVER_APPROVAL_MODEsmartTool safety policy for unattended server/webhook runs (smart, auto, yolo, manual).
--workspaces-dirTALKOPS_WORKSPACES_DIRCurrent directoryRoot directory for per-project or per-tenant execution workspaces.
--modelTALKOPS_MODELActive defaultOverride the default LLM model used by the server's orchestrator graph.

Isolating public webhook ingress from internal operator traffic: Pass --port 2024 --webhook-port 8080 to talkops serve. You can then expose port 8080 to your public API gateway or load balancer for PagerDuty/GitHub webhooks while keeping port 2024 strictly on your private tailnet or VPN for engineer TUI clients.

Connecting multiple clients to the server​

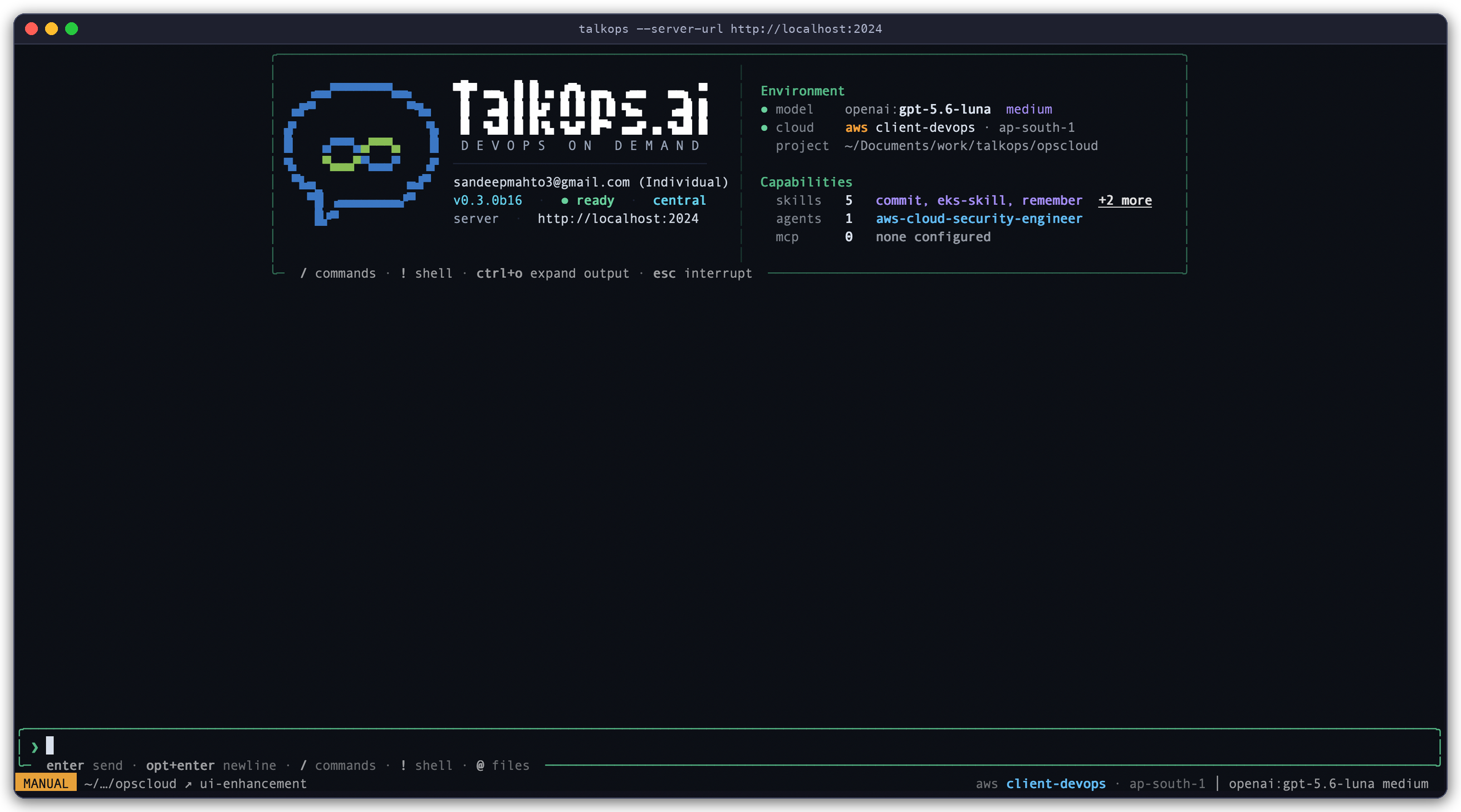

Once talkops serve is running, any number of engineers or CI/CD runners can connect their local talkops binary to the central server. Connected clients run a thin local UI while delegating graph execution, tool calls, and checkpoint storage to the remote server.

Step 1: Log in once with talkops auth login​

Persist your server URL and exchange your API key for a cached, auto-refreshing JWT:

talkops auth login \
  --server-url https://talkops.internal:2024 \
  --api-key oc_live_9f8e7d6c5b4a... \
  --user-id alice@company.com

Verify your active session and JWT expiration at any time:

talkops auth status

Step 2: Launch interactive TUI or headless CLI sessions​

If you logged in via talkops auth login or exported TALKOPS_SERVER_URL, simply run talkops. You can also pass connection flags explicitly per invocation:

# Launch interactive TUI connected to the central server
talkops --server-url https://talkops.internal:2024 --user-id alice@company.com

# Resume a specific remote thread (including a thread created by a webhook alert!)
talkops --server-url https://talkops.internal:2024 -r 4e8b12a0-9c3d-4f11-8a22-7b6c5d4e3f21

# Run a headless check in CI/CD against the central server
talkops -p "Verify staging Kubernetes deployments after release v2.14.0" \
  --server-url https://talkops.internal:2024 \
  --api-key "$TALKOPS_API_KEY" \
  --user-id ci-deploy-bot

Step 3: Manage remote threads across the team​

Use talkops threads from your shell or /threads and /fork inside the TUI to collaborate on remote sessions:

# List threads stored on the central server
talkops threads list --server-url https://talkops.internal:2024 --user-id alice@company.com -n 20

# Delete a remote thread
talkops threads delete 4e8b12a0-9c3d-4f11-8a22-7b6c5d4e3f21 --server-url https://talkops.internal:2024

Inside an active TUI session connected to the central server:

  • Run /threads to browse and switch between your remote threads or inspect webhook-created incident threads.
  • Run /fork [new-title] to clone the current remote thread checkpoint into a new independent branch (POST /api/v1/threads/{id}/fork) so you can test an alternative remediation hypothesis without disrupting a teammate's session.
  • Run /compact to summarize conversation history and prune superseded remote checkpoints (POST /api/v1/threads/{id}/prune).

Multi-tier authentication & JWT token exchange​

When --auth-mode token is enabled (or when TALKOPS_SERVER_API_KEYS / TALKOPS_JWT_SECRET / TALKOPS_CONTROL_PLANE_URL is set), TalkOpsAuthMiddleware protects all client endpoints using a high-performance multi-tier authentication pipeline (src/talkops/server/auth.py).

How the 1-step API key → JWT exchange works​

  1. Initial Exchange (POST /api/v1/auth/token): When a client authenticates with a long-lived API key (oc_live_...), TalkOpsClientAuth exchanges it once at /api/v1/auth/token for a short-lived signed JWT (eyJ..., default TTL 900s / 15 minutes).
  2. Local Cache & Offline Grace Period: The client stores the JWT in ~/.talkops/.state/auth.json (0600 permissions) with a 7-day offline grace period (TALKOPS_AUTH_GRACE_SECONDS=604800).
  3. Sub-Millisecond Verification (<1ms): On every subsequent request, the client sends Authorization: Bearer eyJ... and X-TalkOps-User-Id: <user_id>. The server verifies the JWT cryptographic signature locally in <1ms without hitting an external database.
  4. Transparent Auto-Refresh: When the JWT is within 60 seconds of expiry or receives a 401 Unauthorized, the client transparently exchanges its stored API key for a fresh JWT and retries the request.

Supported server authentication backends​

TierEnvironment VariablesHow Verification Works
Tier 1: Signed JWT (<1ms local)TALKOPS_CONTROL_PLANE_JWKS_URL, TALKOPS_JWT_PUBLIC_KEY, or TALKOPS_JWT_SECRETVerifies RS256/ES256 tokens against cached Control Plane JWKS or a static PEM public key, or HS256 tokens using TALKOPS_JWT_SECRET. Extracts sub, org_id, roles, and tier.
Tier 2: Control Plane IntrospectionTALKOPS_CONTROL_PLANE_URLValidates opaque oc_live_... API keys against POST {CONTROL_PLANE_URL}/v1/auth/introspect and caches valid identities for TALKOPS_AUTH_CACHE_TTL (default 300s).
Tier 3: Static Multi-User API KeysTALKOPS_SERVER_API_KEYS or TALKOPS_SERVER_API_KEYMaps static keys directly to user IDs (e.g., TALKOPS_SERVER_API_KEYS="alice:oc_key_1,bob:oc_key_2") and issues local HS256 JWTs on /api/v1/auth/token.

Multi-tenant thread & memory isolation​

When multiple engineers connect to the same Central Server, TalkOps enforces tenant boundaries across both conversation threads and the LangGraph long-term store:

  • Thread Ownership Stamping: When a user creates or runs a thread, the server stamps metadata["owner"] = user_id (and org_id when present). Calls to GET /api/v1/threads filter results to the authenticated user_id unless the caller holds the admin role or belongs to the system namespace.
  • Per-User Store Namespace Isolation: Long-term memory operations (/store) automatically scope non-system namespaces under (user_id, ...) while allowing read access to shared namespaces (system, global, shared, skills, plugins).

HTTP API endpoints reference​

In addition to standard LangGraph Server routes (/threads, /runs, /assistants, /store), talkops serve exposes the following TalkOps native endpoints:

Method & PathAuth RequiredDescription
GET /api/v1/server/infoOptionalReturns server version, checkpoint_backend (postgres or sqlite), auth_mode, and multi-tenant capabilities.
POST /api/v1/auth/tokenAPI Key (Bearer)Exchanges a long-lived API key (oc_live_...) for a short-lived signed JWT (eyJ...).
GET /api/v1/threadsYes (token mode)Lists threads owned by the caller with title, updated timestamp, model, and message count.
GET /api/v1/threads/{thread_id}Yes (token mode)Retrieves metadata and message history for a specific thread.
PATCH /api/v1/threads/{thread_id}/titleYes (token mode)Renames a remote thread ({"title": "..."}).
POST /api/v1/threads/{thread_id}/forkYes (token mode)Clones a remote thread's latest checkpoint into a new thread_id.
POST /api/v1/threads/{thread_id}/pruneYes (token mode)Deletes superseded checkpoints while keeping the latest keep_latest states.
DELETE /api/v1/threads/{thread_id}Yes (token mode)Permanently deletes a remote thread and all associated checkpoints.
GET /.well-known/openid-configurationPublicOpenID Connect discovery metadata for cloud workload federation (AWS STS / GCP / Azure).
GET /.well-known/jwks.jsonPublicJSON Web Key Set (JWKS) public keys for verifying server-issued tokens.

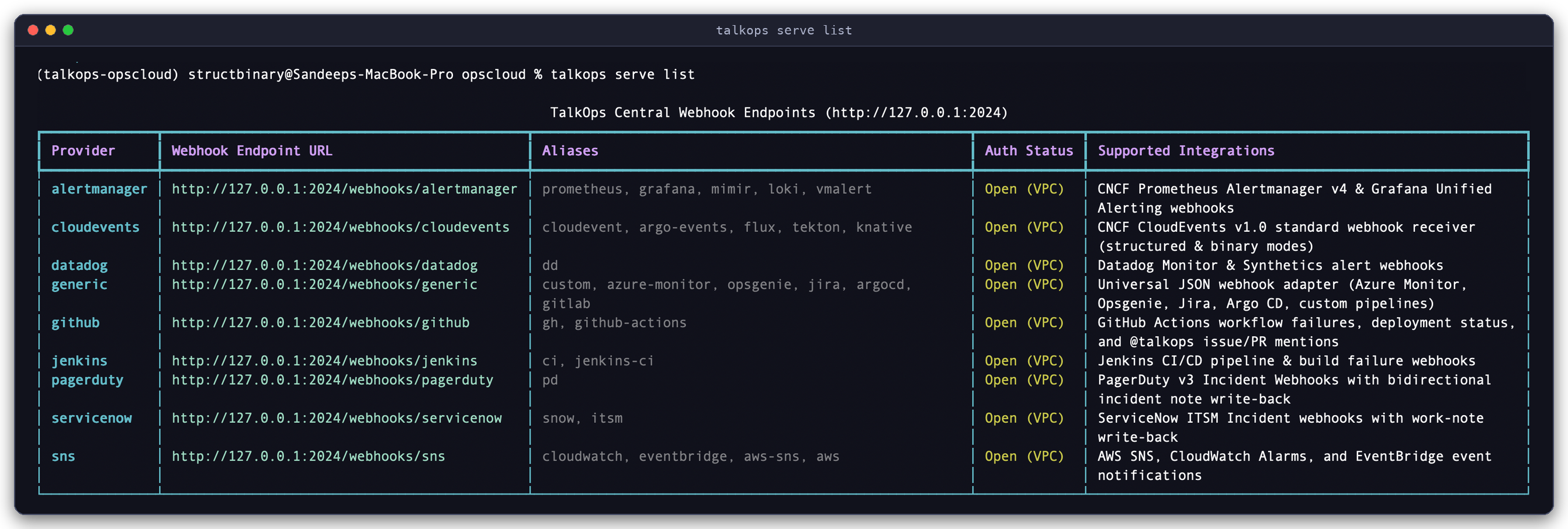

GET /webhooksPublicLists all registered inbound webhook provider adapters (sns, pagerduty, alertmanager, etc.).
GET /webhooks/healthPublicHealth check for the webhook ingestion subsystem.
GET /webhooks/deliveriesPublic / TokenLists the 100 most recent webhook deliveries, status codes, and spawned LangGraph thread_ids.
POST /webhooks/{provider}Provider Secret / HMACIngests an inbound event from a supported DevOps or observability platform.
